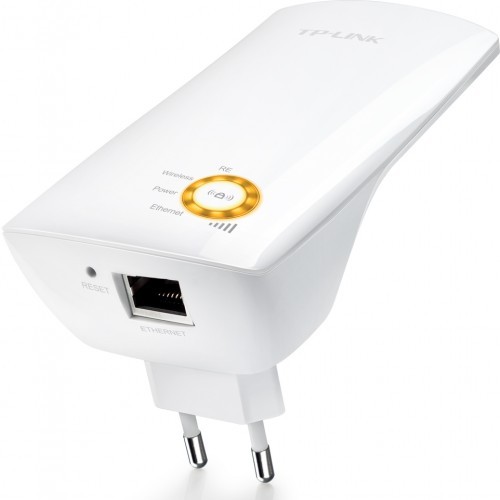

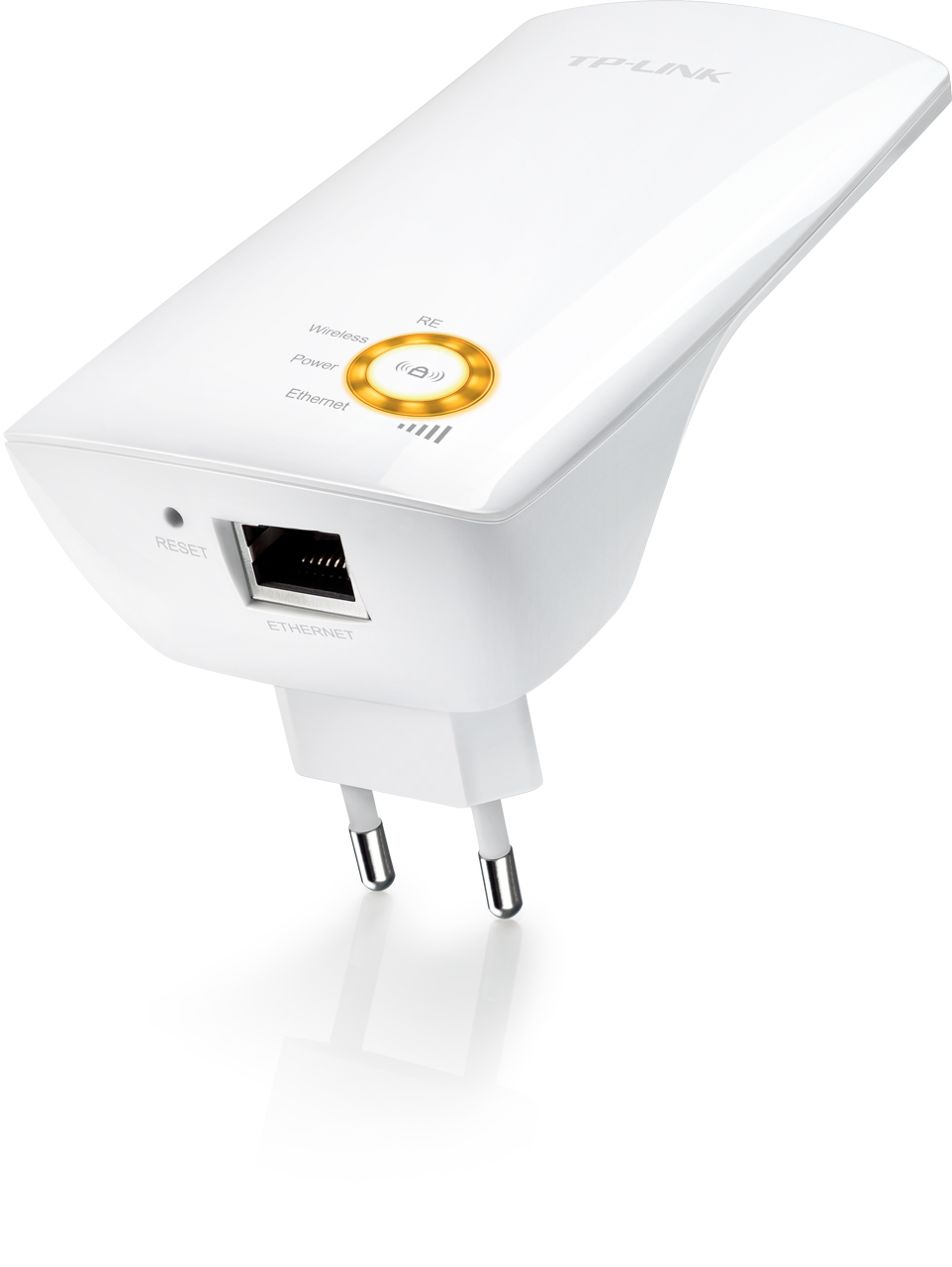

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly Miniature size and wall-mounted design make it easy to deploy and move flexibly Easily expand wireless coverage at a push of Range Extender button Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES
Interface    1 * 10/100M Ethernet Port (RJ45)
Plug Type    EU
Button    RE (Range Extender) Button, Reset Button
Dimensions (W X D X H)    4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Wireless Standards    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna    Internal
Power Consumption    About 3W
WIRELESS FEATURES
Frequency    2.4~2.4835GHz
Signal Rate    11n: Up to 150Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
EIRP    < 0 dBm (EIRP)
Reception Sensitivity    130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes    Range Extender
Wireless Functions    WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security    64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification    CE, RoHS
Package Contents    150Mbps Universal WiFi Range Extender TL-WA750RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements    Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux
Environment    Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
